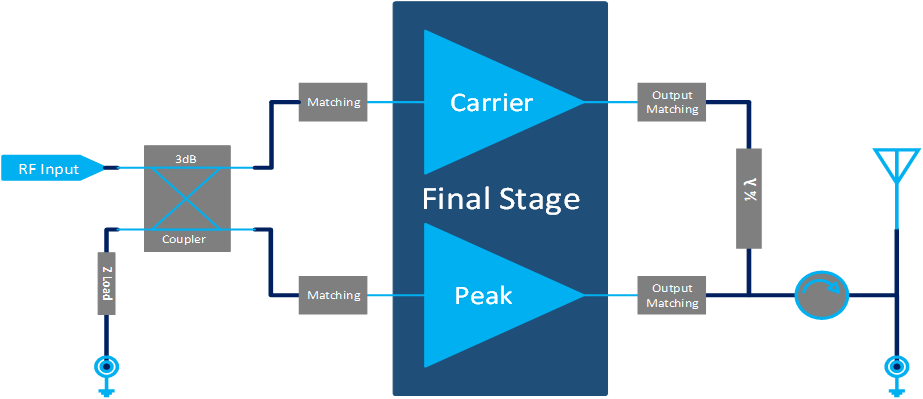

4800MHz-5000MHz 10W Final Solution

應(yīng)用方案 | 日期：2023-08-15 | 閱讀：

Final:

DXG2PH50A-90N

4800MHz-5000MHz 10W Final Solution(圖2)

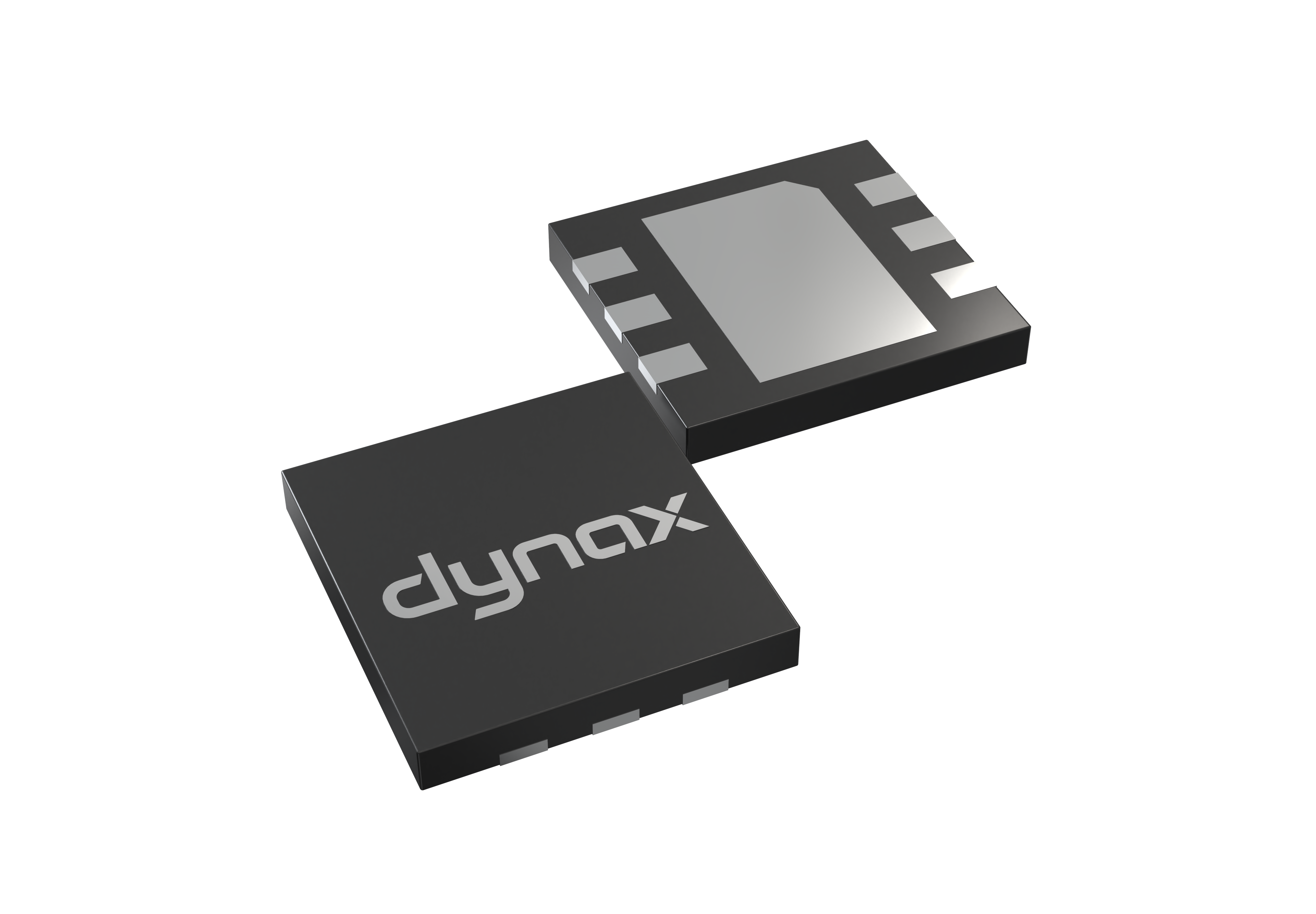

Package Type:

DFN 7x 6.5mm

	CW Pulsed 10%	Modulated Signal
Freq (MHz)	Psat (dBm)	Gp (dB)@41.3dBm	DE (%)@41.3dBm	ACLR (dBc)@ 41.3dBm
4800	49.7	12.3	48.0	-32.0
4880	49.6	12.5	48.3	-31.0
4960	49.5	12.3	49.2	-32.0
Remark : Test Condition CW Pulsed: 10% Duty Cycle, 100uS Duration; Modulated Signal Type: 3.84MHz, 1C_WCDMA, PAR=7.5dB; 64DPCH; Tested without isolator.
